Basic Info

• Model NO.: YN918G

• Walking Mode: Wheeled

• Certification: CE, ISO9001: 2000, ISO9001:2008

• Rated Load: 1500 Kg

• Rated Power: 38kw

• Dumping Height: 2700mm

• Max. Drawing Force: 33kn

• Trademark: YINENG

• Origin: Shandong China

• Type: Small Loader

• Load and Unload Method: Front Discharge

• Condition: New

• Rated Capacity: 0.7m3

• Tire: 20.5-16

• Max. Breakout Force: 46kn

• Operating Weight: 4500kg

• Specification: 1500KG 0.7CBM Bucket Capacity

• HS Code: 8429

Product Description

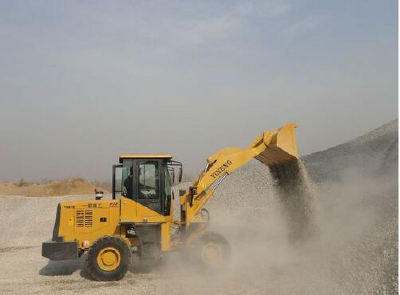

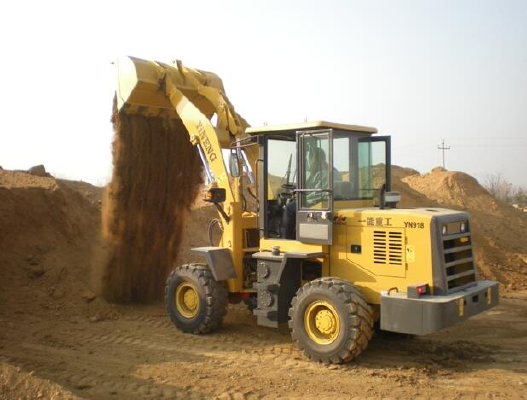

YN918 4wd small loader:

1. Adopted changchai 4L68 38kw 4 cylinder diesel engine.

2. Separated hydraulic torque converter transmission of Beilian brand which is used by SEM (subsidiary of Caterpillar) .

3. Chinese famous Yunyu axle which is widely used in most of chinese        wheel loaders' manufacturers.

4. High efficient sealed cylinder as well as SDLG.
5. Split flow of single pump for working hydraulic system.
6. Double sealed hydraulic pipeline joints.
7. Loading sensing fully hydraulic steering system system.

8. Air over hydraulic brake system, caliper disc brakes
9. Working device with automaticlly leveling ability at high position.
10. Buckets articulated points take sealed, lubricated dust-proof layers.
11. Rated capacity: 0.6CBM, Rated load: 1.5ton,
       Dumping height: 2700mm
10. Chinese famous Yunyu axle which is widely used in most of chinese       wheel loaders' manufacturers.

Optional: Joystick control/quick hitch/pallet fork /rops/air conditioner.
