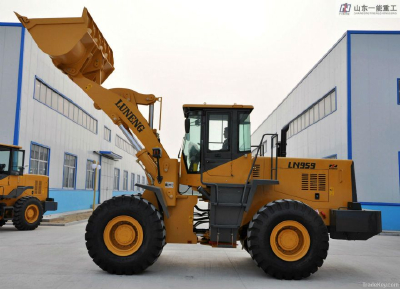

Shandong Yineng Wheel loader YN959

Shandong Yineng Wheel loader YN959

  • Min.Order Quantity: 1 Set
  • Supply Ability: 3000 Packages per Year
  • Port: Qingdao
  • Payment Terms: L/C,T/T,Western Union
Get Latest Price:
  • *Quantity: Set/Sets
| Factory
Experience:2009-09-25
Buyer Protection

- Guaranteed Secure Payments on Every Order

- Refund if your item is not delivered or as described

- Buyer Protection after order confirmation

Latest Browsing
Product Details
  • Size:  60CBM
  • Place of Origin:  Shandong
  • Brand Name:  Yineng
  • Model Number:  Yineng Loader YN959G
  • Weight: 17000.000 kg

Product Description

3 M3, 5 Ton Front Wheel Loader, with ISO9001: 2000 & 2008.

*Caterpillar Technology Shangchai Engine Is Adopted, with Large Torque Backup and Strong Power.

*Hangzhou Advance Gear Group Wg180 Torque Converter and Fix-Shaft Gearbox, with Zf Technology.

*Electro-Hydraulic Control, 4 Forward and 3 Reverse,

* Heavy chassis makes our YN959 more reliable and steady.

*Single Lever Pilot Control System Makes Operation Easy and Comfortable.

*Strengthened Axles Owns Large Bearing Capacities and High Reliability.

*Twin Pump Merging Hydraulic System Makes Lower Consumption and Excellent Performance.

*The Coaxes Flow-Amplified, Hydraulic Compensated Steering Makes Operation Easy and Performace Reliable.

*Both Travel System and Working Hydraulic System Are Forced-Cooled, Improving The Efficiency Obviously.

*Air Over Hydraulic Brake System; Eight Caliper Disc Brakes.

*Air Break Control, Expand Hoof Type Parking Brake and Emergency Brake.

*Large Space Articulated Frame Makes Operation and Traveling Stable.

*Working Device with Automatically Levelling Ability at High Position.

*Main Articulated Points Take Sealed, Lubricated, Dust-Proof Layers, Which Owns Good Durability.

*Integral, Luxury Instrument Board.

*New, Luxury Cabin.


Optionals:
(1) Dongfeng Cummins 6CTA8.3-C215
(2) A/C
(3) Quick Hitch
(4) Fork
(5) Rops Cab

ItemSpecificationItemSpecification
Bucket capacity3 m 3Min. turning radius
(outside of rear wheels)
6630 mm
Rated load5000 kgsteering angle38º
Dumping height3100 mmMin. ground clearance500 mm
Dumping reach1280 mmWheel base3200 mm
Boom lifting time6 STread2250 mm
Total cycling time12 SEngine modelC6121ZG50
Max. speed38 km/hRated power162kW/2200rpm
Max. breakout force180 kNTyre23.5-25
Max. drawing force152 kNOverall dimensions7960*3070*3400 mm
Max. grade ability30°Operating weight17000 kg



  • Size:  60CBM
  • Place of Origin:  Shandong
  • Brand Name:  Yineng
  • Model Number:  Yineng Loader YN959G
  • Weight: 17000.000 kg
