- Size: 1CBM
- Place of Origin: Shandong
- Brand Name: Yineng

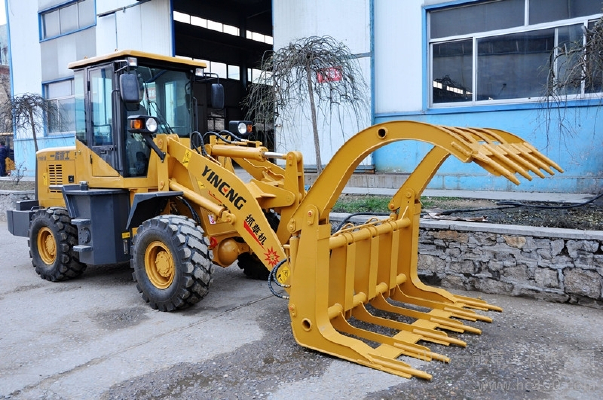

- Model Number: Yineng Loader YN920D
- Weight: 1500.000 kg
FEATURES:
* Adopt Jiangsu Changchai four cylinder diesel engine.
*Hydrodynamic transmission technology and separated structure make high reliability and easy maintenance.
* Controlled by flexible shaft, hydraulic power shift gearbox with 2 forward and 2 reverse gears makes operate easy.
* Single pump, split flow working hydraulic system makes lower consumption and excellent performance.
* Double sealed hydraulic pipeline joints with 24°awl and O ring of international standard, avoiding oil leakage;
* Load sensing fully hydraulic steering system makes operation easy.
* Air over hydraulic brake system; Caliper disc brakes.
* Working device with automatically levelling ability at high position.
* Bucket articulated points take sealed, lubricated, dust-proof layers, which owns good durability.
* Integral, luxury instrument board. New, luxury cabin.
| Item | Specifications | Item | Specifications |
| Bucket capacity | 0.7 m 3 | Min. turning radius (outside of rear wheel) | 4200mm |
| Rated load | 1500 kg | Steering angle | 35º (L/R) |
| Dumping height | 2700 mm | Min. ground clearance | 250mm |
| Dumping reach | 860 mm | Wheel base | 2150mm |
| Boom lifting time | 4.5 S | Tread | 1400mm |
| Total cycling time | 9 S | Engine model | 4L68 |
| Max. speed | 19km/h | Rated power | 38kW/2400rpm |
| Max. breakout force | 46 kN | Tyre | 16/70-16 |
| Max.drawing force | 33 kN | Overall dimensions | 5520*1800*2650mm |
| Max. Gradeability | 28° | Operating weight | 4500kg |
